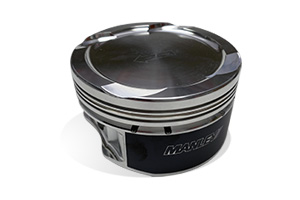

FORD COYOTE MANLEY PLATINUM SERIES LIGHTWEIGHT PISTONS
Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. We utilize a proven offset wrist pin design, a 1.2, 1.2, 3mm Total Seal ring package and moly coated skirts for ultimate performance. Roundwire locks and pressure balance grooves are included with every set at no additional charge.
Premium Chrome Moly wrist pins are included with the Standard Series and 9310 Alloy wrist pins are included with the Extreme Duty Series. |
 |
|
Standard
Part No. |
|
Extreme Duty
Part No. |
|
Bore Size |
|
Rod
Length |
|
Stroke |
|
Comp
Distance |
|
Piston
Wt/Gms |
|
Premium Steel
Top Rings |
|
|
| -12cc DISH (9.0:1) |
|
| 598100C-8 |
598100CE-8 |
3.630" |
5.933" |
3.650" |
1.165" |
361 |
46700ST-8 |
|
| 598105C-8 |
598105CE-8 |
3.635" |
5.933" |
3.650" |
1.165" |
365 |
46710ST-8 |
|
| 598110C-8 |
598110CE-8 |
3.640" |
5.933" |
3.650" |
1.165" |
366 |
46710ST-8 |
|
| 598170C-8 |
598170CE-8 |
3.700" |
5.933" |
3.650" |
1.165" |
375 |
46771ST-8 |
|
| -2.5cc FLAT TOP (10.0:1) |
|
| 598400C-8 |
598400CE-8 |
3.630" |
5.933" |
3.650" |
1.165" |
365 |
46700ST-8 |
|
| 598405C-8 |
598405CE-8 |
3.635" |
5.933" |
3.650" |
1.165" |
368 |
46710ST-8 |
|
| 598410C-8 |
598410CE-8 |
3.640" |
5.933" |
3.650" |
1.165" |
370 |
46710ST-8 |
|
| 598470C-8 |
598470CE-8 |
3.700" |
5.933" |
3.650" |
1.165" |
380 |
46771ST-8 |
|
| +3.75cc DOME (11.0:1) |
|
| 598000C-8 |
598000CE-8 |
3.630" |
5.933" |
3.650" |
1.165" |
391 |
46700ST-8 |
|
| 598005C-8 |
598005CE-8 |
3.635" |
5.933" |
3.650" |
1.165" |
393 |
46710ST-8 |
|
| 598010C-8 |
598010CE-8 |
3.640" |
5.933" |
3.650" |
1.165" |
395 |
46710ST-8 |
|
| 598070C-8 |
598070CE-8 |
3.700 |
5.933" |
3.650" |
1.165" |
398 |
46771ST-8 |
|
|
|

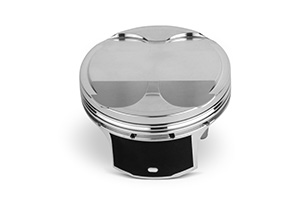

| 2011-2017 Coyote 5.0L Modular JE Pistons - Std Bore: 3.630" |
 |
|
|
Part # |
|
CID |
|
Bore |
|
Stroke |
|
Rod
Lgth. |
|
Block
Ht. |
|
Comp.
Ht. |
|
Head Cubic Centimeters
57cc
Compression Ratio |
|
Dome
Vol. |
|
Gram
Wt. |
|
Footnote |
|
Oversize |
|
Recom.
Ring Set |
|
|
| 314411 |
302 |
3.630 |
3.650 |
5.933 |
8.932 |
1.174 |
8.5:1 |
-17.4 |
347 |
T |
STD |
JG1008-3632 |
|
| 314415 |
302 |
3.630 |
3.650 |
5.933 |
8.932 |
1.174 |
9.5:1 |
-7.6 |
356 |
T |
STD |
JG1008-3632 |
|
| 314419 |
302 |
3.630 |
3.650 |
5.933 |
8.932 |
1.174 |
11.0:1 |
3.3 |
362 |
V |
STD |
JG1008-3632 |
|
| 314423 |
302 |
3.630 |
3.650 |
5.933 |
8.932 |
1.174 |
12.5:1 |
11.3 |
383 |
M |
STD |
JG1008-3632 |
|
| 314412 |
304 |
3.640 |
3.650 |
5.933 |
8.932 |
1.174 |
8.5:1 |
-17.8 |
348 |
T |
0.010 |
JG1008-3642 |
|
| 314416 |
304 |
3.640 |
3.650 |
5.933 |
8.932 |
1.174 |
9.5:1 |
-8.0 |
358 |
T |
0.010 |
JG1008-3642 |
|
| 314420 |
304 |
3.640 |
3.650 |
5.933 |
8.932 |
1.174 |
11.0:1 |
3.0 |
364 |
V |
0.010 |
JG1008-3642 |
|
| 314424 |
304 |
3.640 |
3.650 |
5.933 |
8.932 |
1.174 |
12.5:1 |
11.1 |
385 |
M |
0.010 |
JG1008-3642 |
|
| 314413 |
306 |
3.650 |
3.650 |
5.933 |
8.932 |
1.174 |
8.5:1 |
-18.2 |
350 |
M,T |
0.020 |
JG1008-3652 |
|
| 314417 |
306 |
3.650 |
3.650 |
5.933 |
8.932 |
1.174 |
9.5:1 |
-8.4 |
360 |
M,T |
0.020 |
JG1008-3652 |
|
| 314421 |
306 |
3.650 |
3.650 |
5.933 |
8.932 |
1.174 |
11.0:1 |
2.7 |
366 |
M,V |
0.020 |
JG1008-3652 |
|
| 314425 |
306 |
3.650 |
3.650 |
5.933 |
8.932 |
1.174 |
12.5:1 |
10.8 |
385 |
M |
0.020 |
JG1008-3652 |
|
| 314414 |
307 |
3.660 |
3.650 |
5.933 |
8.932 |
1.174 |
8.5:1 |
-18.6 |
352 |
M,T |
0.030 |
JG1008-3661 |
|
| 314418 |
307 |
3.660 |
3.650 |
5.933 |
8.932 |
1.174 |
9.5:1 |
-8.7 |
360 |
M,T |
0.030 |
JG1008-3661 |
|
| 314422 |
307 |
3.660 |
3.650 |
5.933 |
8.932 |
1.174 |
11.0:1 |
2.4 |
381 |
M,V |
0.030 |
JG1008-3661 |
|
| 314426 |
307 |
3.660 |
3.650 |
5.933 |
8.932 |
1.174 |
12.5:1 |
10.6 |
387 |
M |
0.030 |
JG1008-3661 |
|
|
|
